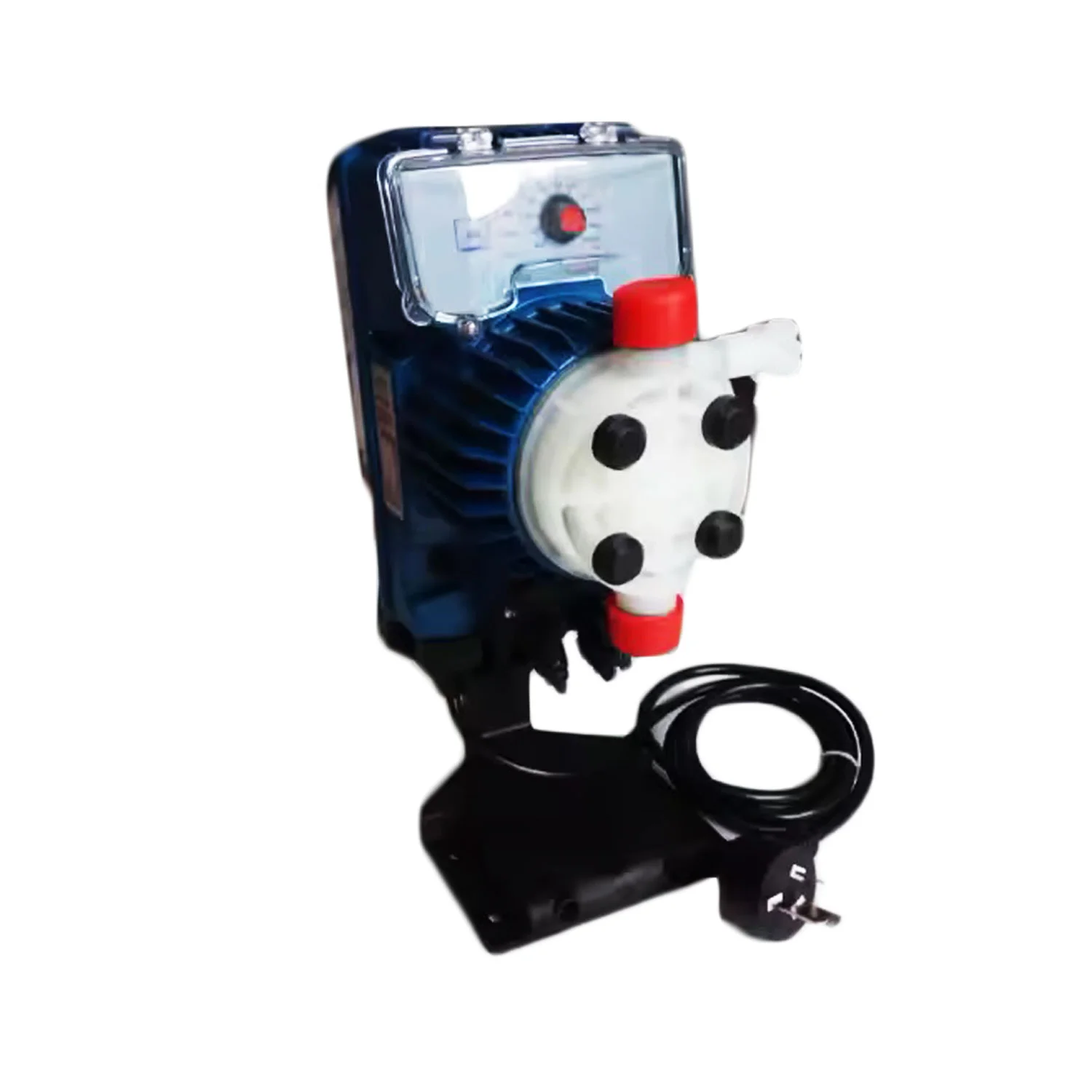

AKS603 Seko Chemical Dosing Pump I 4LPH@12Bar

0 reviews

Model : AKS603
Liquid : Acid/Chemical
Dosing Head : PVDF
Discharge Capacity : 4-8 LPH
Total dynamic head : 12-2Bar
Drive Motor : 20 W
Brand : SEKO, Italy

Description

The AKS603 Chemical Dosing Pump is a highly specialized pump designed to inject precise amounts of chemicals into a process stream, making it an essential tool in various industrial applications. Often used in water treatment, manufacturing, and other sectors, this pump ensures that chemicals such as acids are added at controlled rates. Designed by SEKO, the AKS603 allows for accurate concentration control, ensuring that the required chemical dosage is maintained within the system. Its precision and reliability make it a valuable asset in ensuring optimal system performance and chemical efficiency.

Seko AKS603 Chemical Dosing Pumps Features:

Accuracy: Capable of dosing in highly accurate & adjustable amounts.

Corrosion Resistance: Head materials made of PP, PVC, stainless steel, or other corrosion-resistant materials due to the potentially hazardous nature of the acid/chemicals.

Automation: It can be automated and integrated with PLC control systems to ensure consistent dosing whenever needed.

Flow Control: Flow rate can be controlled manually or automatically via electronic control systems.

Applications of Dosing Pump:

  • Water Purification Systems
  • Wastewater Treatment Plants
  • Industrial Production processes like food & beverage, pharmaceuticals, textile, garments, chemicals processing industry
  • Agricultural systems should apply fertilizers or pesticides in accurate amounts.

There are so many varieties of seko pumps, such as diaphragm type, piston type, etc. Every pump type selection depends on its application of it.

Actually, chemical dosing pump prices vary widely. It depends on the head materials, lining materials, transferring capacity, pressure, & motor efficiency, etc.

Generally, the dosing pump price depends on capacity.

  • In assumption 0-30LPH, the price is between 10,000 to 45,000 BDT. (For light dosing systems like water treatment)
  • 20-300LPH price between 30,000 to 200,000 BDT. (For production process use or wastewater treatment process)
  • And 300-1500LPH price between 150,000 to 500,000 BDT. (For heavy use with acidic medium).

Technical Specifications:

Model: AKS603
Liquid: Acid/Chemical
Dosing Head: PVDF
Section, Discharge: PPE
Diaphragm Material: EPDM
Sp. Gravity: 1 kg/dm3
Temperature: Ambient
Discharge Capacity: 4-8 LPH
Total dynamic head: 12-2Bar
Drive Motor: 20 W
Standardization: ISO 9001, 2008
Valve Ball Material: Alumina Ceramic
O-ring: FKM / EPDM
Seal & Gasket: EPDM / FPM
Brand: SEKO
Origin: Italy

Contact

For wholesale prices, please contact us. Or Call us 01771646625 (WhatsApp)
