Fiberglass-reinforced plastic (FRP) vessels are widely used in water treatment systems because of their unique strength, durability, and corrosion resistance combination. These vessels are designed to handle various water treatment processes, including filtration, softening, and desalination while maintaining high performance in demanding environments. The price of a 1035 FRP vessel can vary based on factors such as size, specifications, and manufacturer.
Still, their long lifespan and low maintenance costs make them a cost-effective solution for both residential and industrial applications. Understanding the pricing and features of FRP vessels is key when considering them for water treatment needs.
Advantages of 1035 FRP Vessels:
- Corrosion Resistance: FRP vessels are profoundly impervious to erosion, making them ideal for treating water with forceful synthetic substances like acids and bases.
- Lightweight: They are lighter than metal vessels, decreasing transportation and establishment costs.
- Durability: FRP materials are strong and endure unforgiving natural circumstances, including UV openness and temperature varieties.
- Customization: FRP vessels can be produced in different shapes and sizes, considering customization given explicit water treatment needs.
- Low Maintenance: These vessels require less upkeep than customary materials, which can prompt diminished functional expenses.
- Thermal Insulation: FRP has excellent warm protection properties, assisting with keeping up with the water’s temperature.
Technical Detail of 1035 FRP Vessel:
| Model | Dia. X Height (Mm) | Top Open | Bottom Open | Mounting Mode | Liters |
| 610 | 155×255 | 2.5″NPSM | N/A | Top | 3.33 |
| 613 | 155×335 | 2.5″ NPSM | N/A | Top | 4.50 |
| 618 | 155×465 | 2.5″ NPSM | N/A | Top | 6.80 |
| 629 | 155×720 | 2.5″ NPSM | N/A | Top | 11.30 |
| 635 | 155×880 | 2.5″ NPSM | N/A | Top | 13.86 |
| 713 | 180×350 | 2.5″ NPSM | N/A | Top | 7.50 |
| 717 | 180×450 | 2.5″ NPSM | N/A | Top | 8.10 |
| 735 | 180×905 | 2.5″ NPSM | N/A | Top | 18.10 |
| 744 | 180×1135 | 2.5″ NPSM | N/A | Top | 24.25 |
| 813 | 205×335 | 2.5″ NPSM | N/A | Top | 7.90 |
| 817 | 205×438 | 2.5″NPSM | N/A | Top | 11.20 |
| 824 | 205×620 | 2.5″ NPSM | N/A | Top | 17.10 |
| 835 | 205×890 | 2.5″ NPSM | N/A | Top | 24.80 |
| 844 | 205×1130 | 2.5″NPSM | N/A | Top | 31.20 |
| 935 | 230×910 | 2.5″ NPSM | N/A | Top | 31.20 |
| 942 | 230×1090 | 2.5″ NPSM | N/A | Top | 38.30 |
| 948 | 230×1230 | 2.5″NPSM | N/A | Top | 44.56 |
| 1013 | 255×340 | 2.5″ NPSM | N/A | Top | 13.10 |
| 1017 | 255×440 | 2.5″ NPSM | N/A | Top | 17.72 |
| 1024 | 255×635 | 2.5″ NPSM | N/A | Top | 25.80 |
| 1035 | 255×905 | 2.5″NPSM | N/A | Top | 38.40 |
| 1044 | 255×1130 | 2.5″ NPSM | N/A | Top | 49.80 |
| 1054 | 255×1380 | 2.5″ NPSM | N/A | Top | 61.60 |
| 1248 | 300×1220 | 2.5″ NPSM | N/A | Top | 78.39 |
| 1252 | 300×1340 | 2.5″ NPSM | N/A | Top | 90.70 |
| 1354 | 335×1400 | 2.5″ NPSM | N/A | Top | 109.34 |
| 1465 | 355×1650 | 2.5″ NPSM | N/A | Top | 148.2 |
| 1665 | 405×1650 | 2.5″ NPSM | N/A | Top | 195.10 |
| 4″UN | 4″UN | Top / Side | 203.1 | ||
| 1865 | 460×1650 | 2.5″NPSM | N/A | Top | 248.04 |
| 4″UN | 4″UN | Top / Side | 256.00 | ||
| 2069 | 510×1750 | 4″UN | N/A | Top / Side | 295.55 |
| 2069 | 510×1900 | 4″UN | 4″UN | Top / Side | 301.20 |
| 2162 | 550×1750 | 4″UN | N/A | Top | 315.77 |
| 2162 | 550×1900 | 4″UN | 4″UN | Top / Side | 323.10 |
| 2472 | 620×1900 | 4″UN | N/A | Top | 467.04 |
| 2472 | 620×2200 | 4″UN | 4″UN | Top / Side | 470.10 |
| 3072 | 760×1900 | 4″UN | N/A | Top | 715.20 |
| 3072 | 760×2100 | 4″UN | 4″UN | Top / Side | 718.10 |
| 3072 | 760×2210 | 6″Flange | 6″Flange | Side | 719.10 |
| 3672 | 910×1900 | 4″UN | N/A | Top | 1012 |
| 3672 | 910×2200 | 4″UN | 4″UN | Top / Side | 1018 |
| 3672 | 910×2250 | 6″Flange | 6″Flange | Side | 1031 |
| 4272 | 1050×2250 | 6″Flange | 6″Flange | Side | 1465 |
| 4872 | 1250×2200 | 6″Flange | 6″Flange | Side | 1685 |
| 4886 | 1250×2400 | 6″Flange | 6″Flange | Side | 2487 |
| 6086 | 1500×2400 | 6″Flange | 6″Flange | Side | 2979 |
| 6367 | 1600×2100 | 6″Flange | 6″Flange | Side | 2764 |
| 6386 | 1600×2500 | 6″Flange | 6″Flange | Side | 3719 |
| 7296 | 1800×2400 | 6″Flange | 6″Flange | Side | 5770 |
| 8096 | 2000×2400 | 6″Flange | 6″Flange | Side | 7860 |
Applications of Pressure Vessels in Water Treatment
Filtration Systems: One of the primary applications of FRP pressure vessels is in water filtration systems. These vessels are commonly used in quartz sand, multimedia, and carbon filters to effectively remove solid particles, sediments, and impurities from water. FRP vessels provide excellent strength and corrosion resistance, which makes them ideal for filtering potable water and wastewater. They help improve water quality by trapping unwanted particles, ensuring cleaner and safer water for various industrial, commercial, and residential applications.

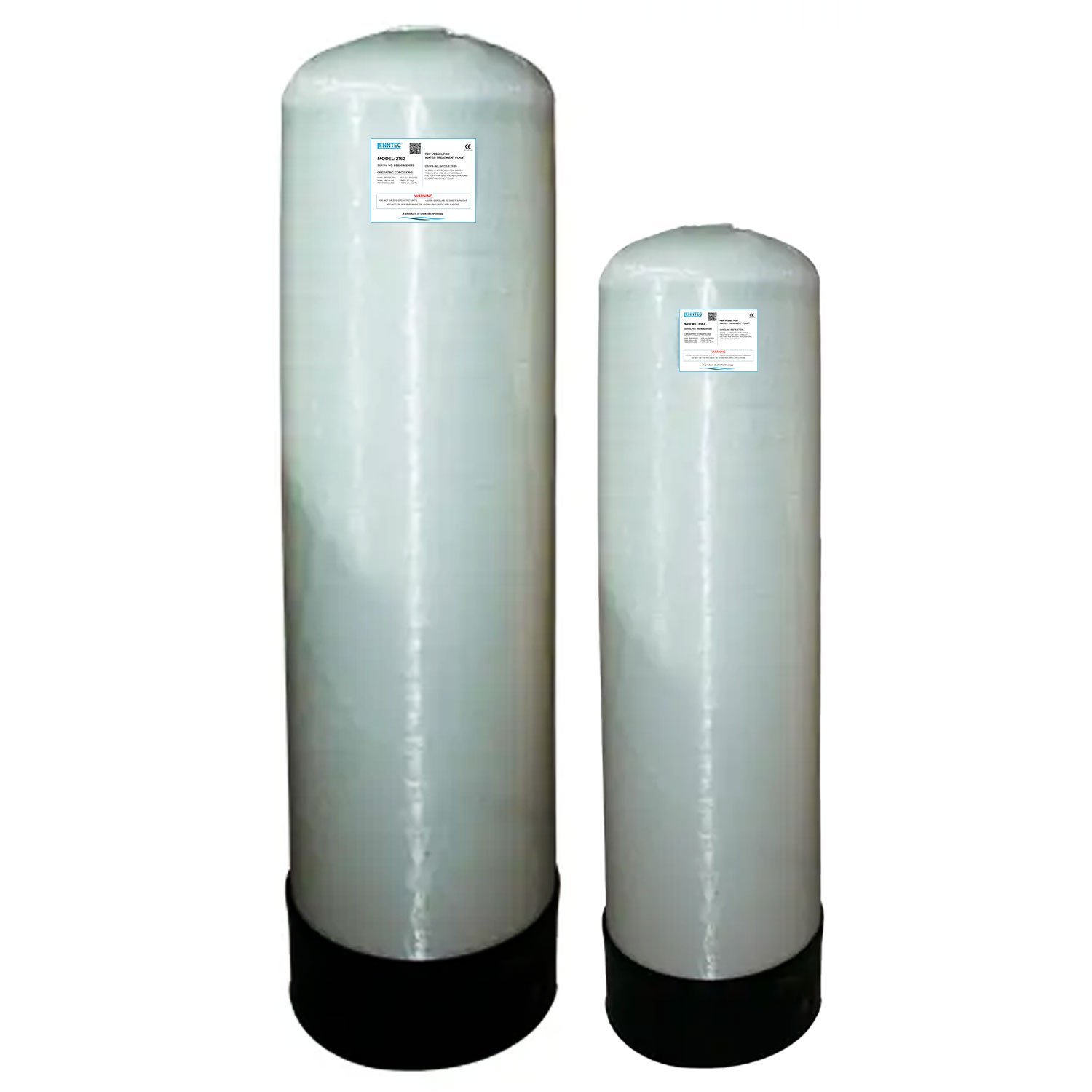

Specifications of 1035 FRP Vessel
Model: 1035
Dimension: Dia 250mm * Height 875mm
MOC: FRP
Base: Round
Working Pressure: 150Psi
Testing Pressure: 300Psi
Working Temp: 1°C to 49 °C
Strainer: N0801-A
Head: F56A1
Opening: 65mm
Connection: 1″
Certification: CE, ISO 9001
Food Grade Liner
Brand: Lenntec
Origin: USA (Assembled in China)
