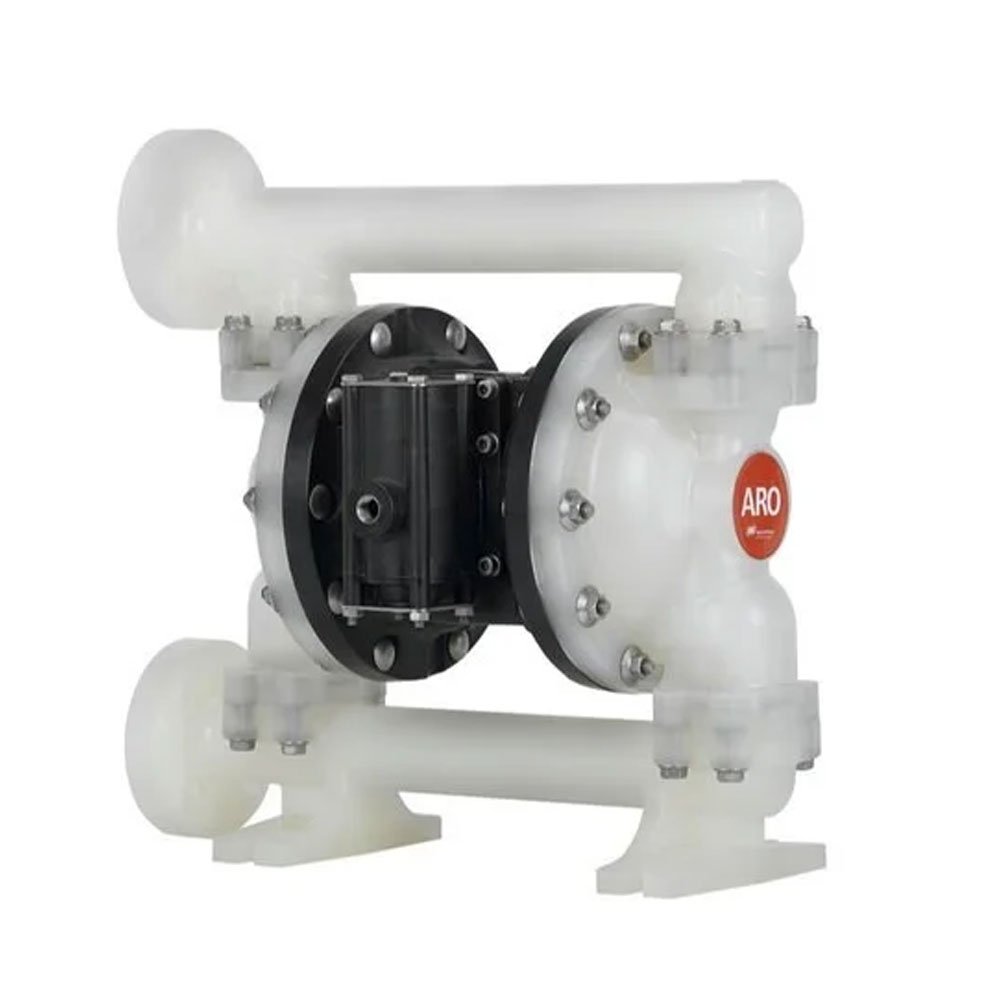

Air Operated Diaphragm Pump
Pump Type: Non Metalic, Air Operated, Double Diaphragm Pump
Model: 66605J – 344
Brand: ARO
Origin: USA.
Warranty: 01 Year from the date of delivery.
Greenify Environmental Technology Ltd is an Importer & Supplier for Air Operated Diaphragm Pump in Bangladesh. An air operated dosing pump is a type of positive displacement pump that uses compressed air as a power source. The compressed air is shifted from one chamber to the other by a linked shaft that allows the chambers to move simultaneously.
Pump Type: Non Metalic, Air Operated, Double Diaphragm Pump
Model: 66605J – 344
Compatibility Compatible with: HCl, Acetic Acid, Sodium Hydroxide, Mango Pulp Etc.
Temperature: Up to120 Deg. C
Discharge Capacity: 3.27 M3/H
Pressure: 6.8 Bar
Inlet & Outlet: 1/2” (15mm)
MOC of Body: Polypropylene
MOC Diaphragm: PTFE
Air Inlet Pressure: 20 -120 psi (1.4 -6.8 bar)
Fluid Pressure: 20 -120 psi (1.4 -6.8 bar)
Maximum Inlet Pressure: 10 PSI (0.69 bar)
Maximum Particle Size: ¼” (6.4 mm)
Temp Range: 2 – 66 °C
Brand: ARO
Origin: USA.
Warranty: 01 Year from the date of delivery.
Greenify Environmental Technology committed to delivering best quality chemical dosing pump to meet this demand. For special price of AODD Pump Contact Us.
