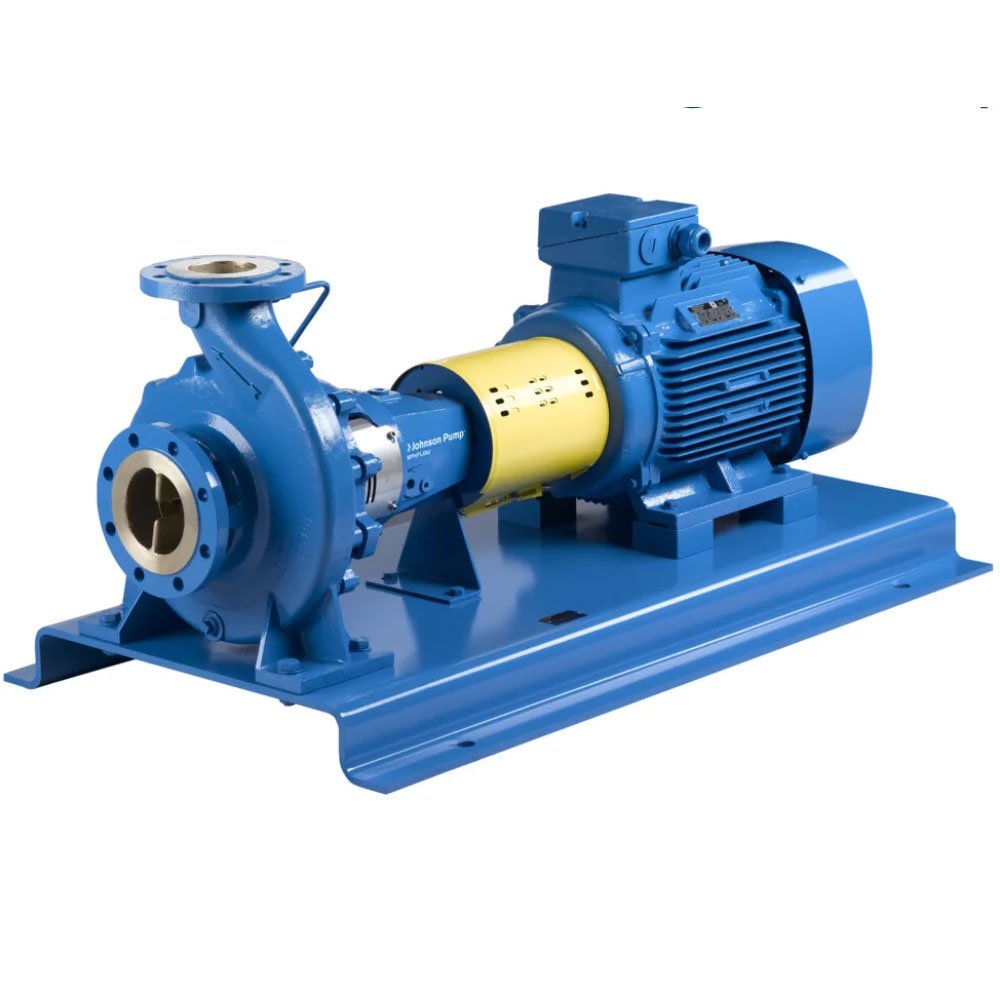

CN32C-160 CombiNorm Centrifugal Pump I Johnson, India

CN32C-160 CombiNorm Centrifugal Pump I Johnson, India

Model: CN32C-160
Capacity: 16 m3/hr
Head: 35 Meter
Motor: 3kW (04HP)
Motor rpm: 2900 rpm
Discharge: 32 mm
Suction: 50 mm
Volt: 380 Volt / 50Hz
Class: F Class (3 Phase)
Shaft Seal: Mech. Seal
Max Casing Pressure: 16 bar
MOC (Body): Cast Iron
MOC (impeller): CI
Motor: Hyden
Brand: Johnson Pump (Netherlands)
Origin: Assembled in India
With base frame, Coupling & Complete set.

Contact Us

CombiNorm represents a range of CN32C-160 CombiNorm Centrifugal Pump suited for handling low-viscosity, clean or slightly contaminated liquids. The pump is designed to EN 733 (DIN 24255).

Horizontal centrifugal pump to EN 733 (DIN 24255)

  • Standardized and modular design
  • Flanges according to ISO 7005 PN16
  • Outstanding hydraulic performance
  • High efficiency impeller
  • Closed impeller with back vanes providing axial balancing of impeller loads
  • Easy maintenance through the Back-Pull-Out principle
  • Single unbalanced / balanced seals to EN 12756 (DIN 24960)
  • Single and double cartridge seals with seal support system
  • Quenched shaft sealing
  • Gland packing
  • Atex certification
  • Dry-shaft design, pumped liquid not in contact with the shaft
  • Robust shaft design
  • Extended life time
  • 2-Deepgroove ball bearings or double row angular contact thrust bearing and cylindrical roller bearing
  • Grease or oil bath lubricated bearings

Suitable for Low viscosity, clean or slightly contaminated liquids

TECHNICAL DATA:

Casing:Cast iron, Nodular cast iron, Bronze
Impeller:Cast iron, Bronze
Max. capacity:1-500m3/h
Max. delivery head:140 m
Max. liquid temp:200°C
Max. pressure:16 bar (10 bar)
Max. speed:3600 rpm



Specifications of Combinorm Horizontal Centrifugal Pump
Model: CN32C-160
Capacity: 16 m3/hr
Head: 35 Meter
Motor: 3kW (04HP)
Motor rpm: 2900 rpm
Discharge: 32 mm
Suction: 50 mm
Volt: 380 Volt / 50Hz
Class: F Class (3 Phase)
Shaft Seal: Mech. Seal
Max Casing Pressure: 16 bar
MOC (Body): Cast Iron
MOC (impeller): CI
Motor: Hyden
Brand: Johnson Pump (Netherlands)
Origin: Assembled in India
With base frame, Coupling & Complete set.

For all types of Johnson pumps, contact us. Call: +880 1771 646 625 (WhatsApp)
