Description

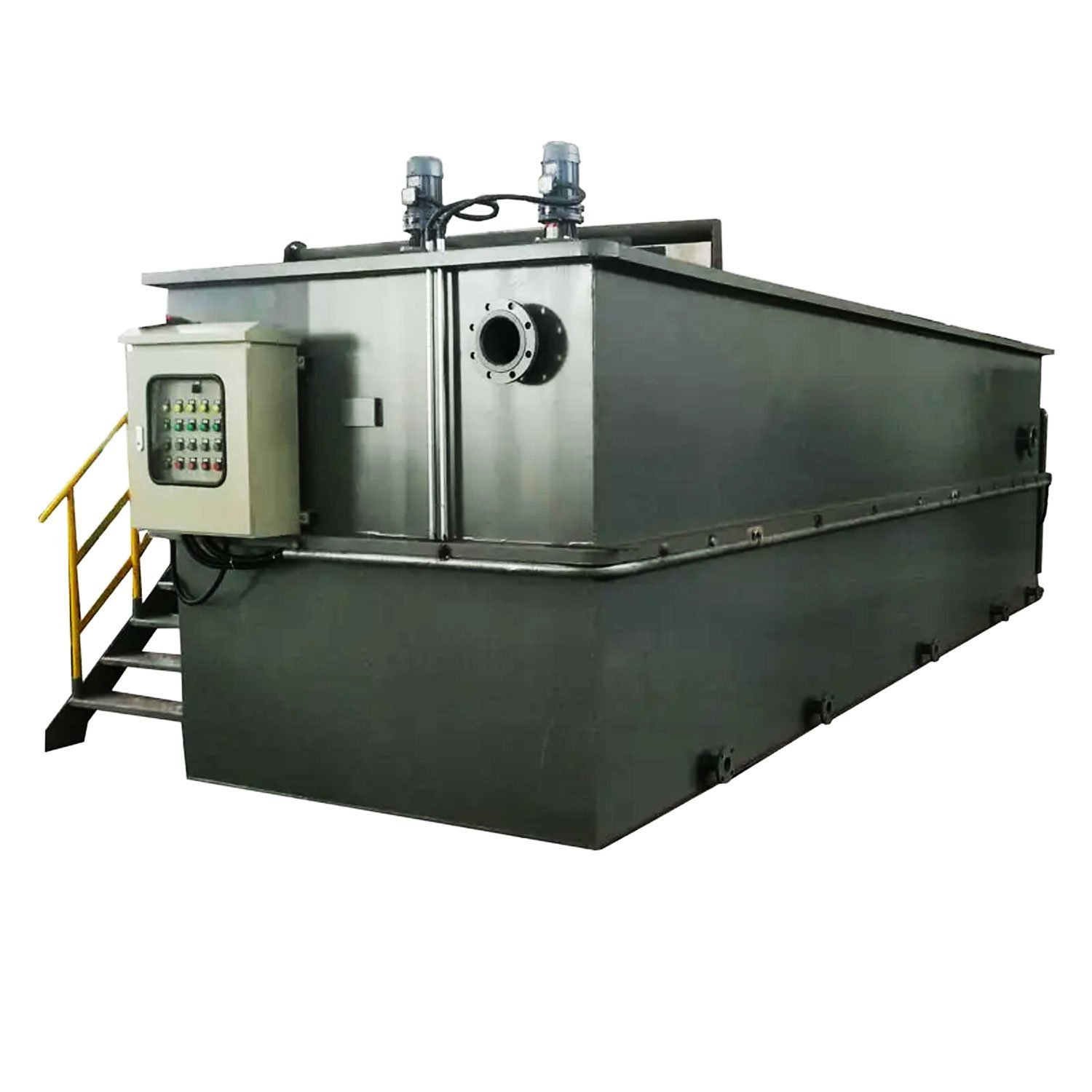

Dissolved air flotation (DAF) is a highly effective method for water clarification. This process involves dissolving air into water under high pressure and then releasing the pressure, which leads to the formation of millions of tiny air bubbles. These bubbles attach to suspended particles in the water, reducing their density to less than that of water. As a result, the particles rise quickly to the surface, where they can be collected and removed, leaving behind clear, purified water. This efficient separation technique is commonly used in industries requiring high-quality water treatment, such as wastewater management, water purification, and industrial processes.
- Flow rate of one set: 1-100 (suitable for export).
- Recycle flow dissolved air flotation.
- A high-efficiency pressurization system creates large quantities of microbubbles and large amounts of tiny bubbles.
- Custom design on different DAF equipment and recycle flow ratio according to the type of wastewater and treatment requirement to achieve target removal effect and stability.
- Adjustable stainless steel chain-type skimmer to suit the different quantities of sludge
- Integrated coagulation tank or flocculation tank and cleaning water tank (as optional) are available to save space and cost.
- Automatic and remote controllable.
- Material of construction.
Advantages of Dissolved Air Floatation:
High efficiency in removing suspended solids, oils, and greases. Reduces chemical consumption for downstream treatment. Helps meet environmental discharge regulations.
Typical Applications:
| Model | Capacity （m³/h） | Dissolved air water volume(m) | Main motor power(kW) | Mixer power(kW) | Scraper power(kW) | Air compressor power(kW) | Dimentions (mm) |
| GETL-2.5 | 2～2.5 | 1 | 3 | 0.55*1 | 0.55 | – | 2000*3000*2000 |
| GETL-5 | 4～5 | 2 | 3 | 0.55*2 | 0.55 | – | 3500*2000*2000 |
| GETL-10 | 8～10 | 3.5 | 3 | 0.55*2 | 0.55 | – | 4500*2100*2000 |
| GETL-15 | 10～15 | 5 | 4 | 0.55*2 | 0.55 | – | 5000*2100*2000 |
| GETL-20 | 15～20 | 8 | 5.5 | 0.55*2 | 0.55 | – | 5500*2100*2000 |
| GETL-30 | 20～30 | 10 | 5.5 | 0.75*2 | 0.75 | 1.5 | 7000*2100*2000 |
| GETL-40 | 35～40 | 15 | 7.5 | 0.75*2 | 0.75 | 2.2 | 8000*2150*2150 |
| GETL-50 | 45～50 | 25 | 7.5 | 0.75*2 | 0.75 | 3 | 9000*2150*2150 |
| GETL-60 | 55～60 | 25 | 7.5 | 0.75*2 | 1.1 | 4 | 9000*2500*2500 |
| GETL-75 | 70～75 | 35 | 12.5 | 0.75*3 | 1.1 | 5.5 | 9000*3000*3000 |
| GETL-100 | 95～100 | 50 | 15 | 0.75*3 | 1.1 | 3 | 10000*3000*3000 |
DAF is commonly used in a variety of industries due to its efficiency in treating water that contains suspended particles and fats, oils, and greases (FOGs).
Contact
If you need a Dissolved Air Floatation (DAF) System, please contact us. Call: 01771646625 (WhatsApp)
