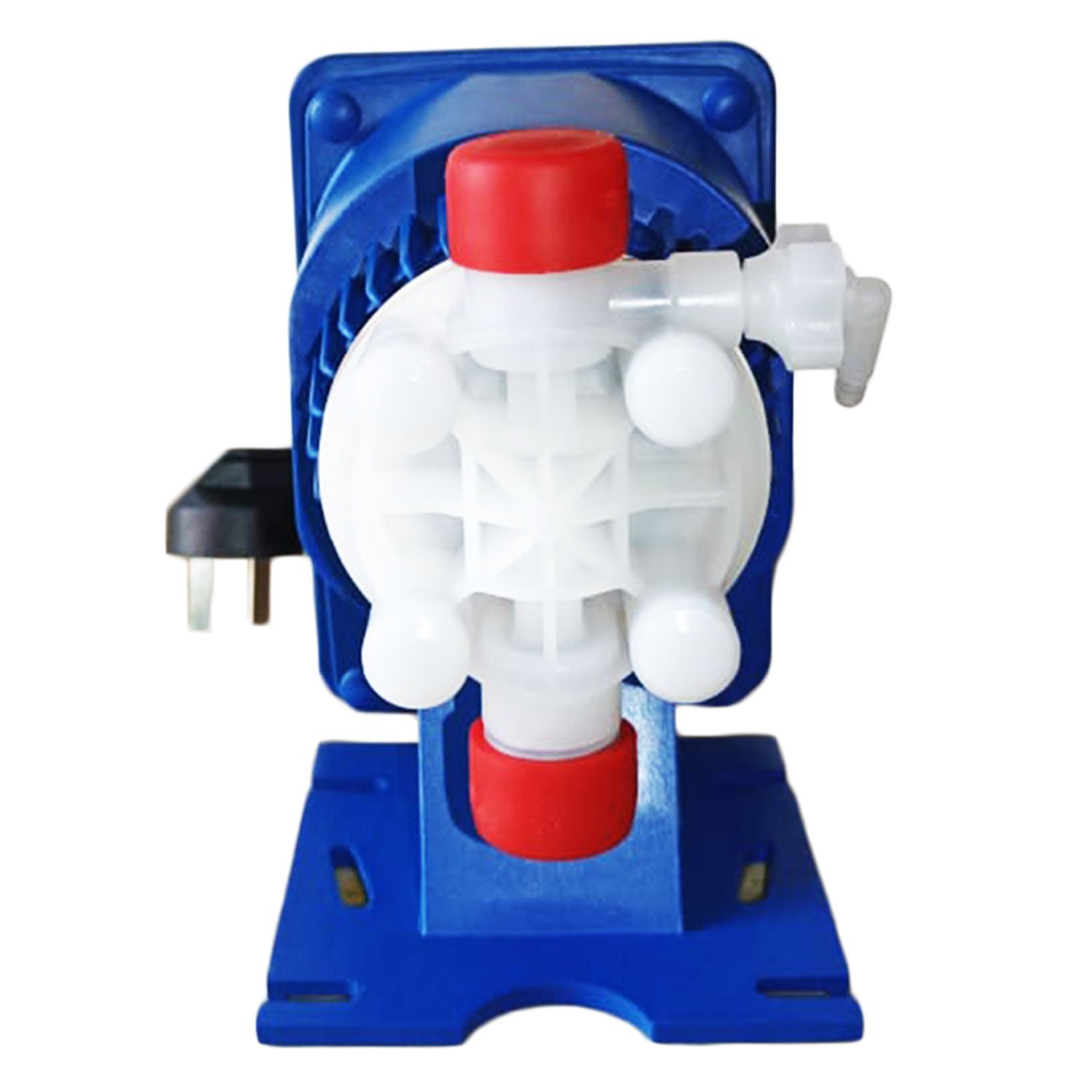

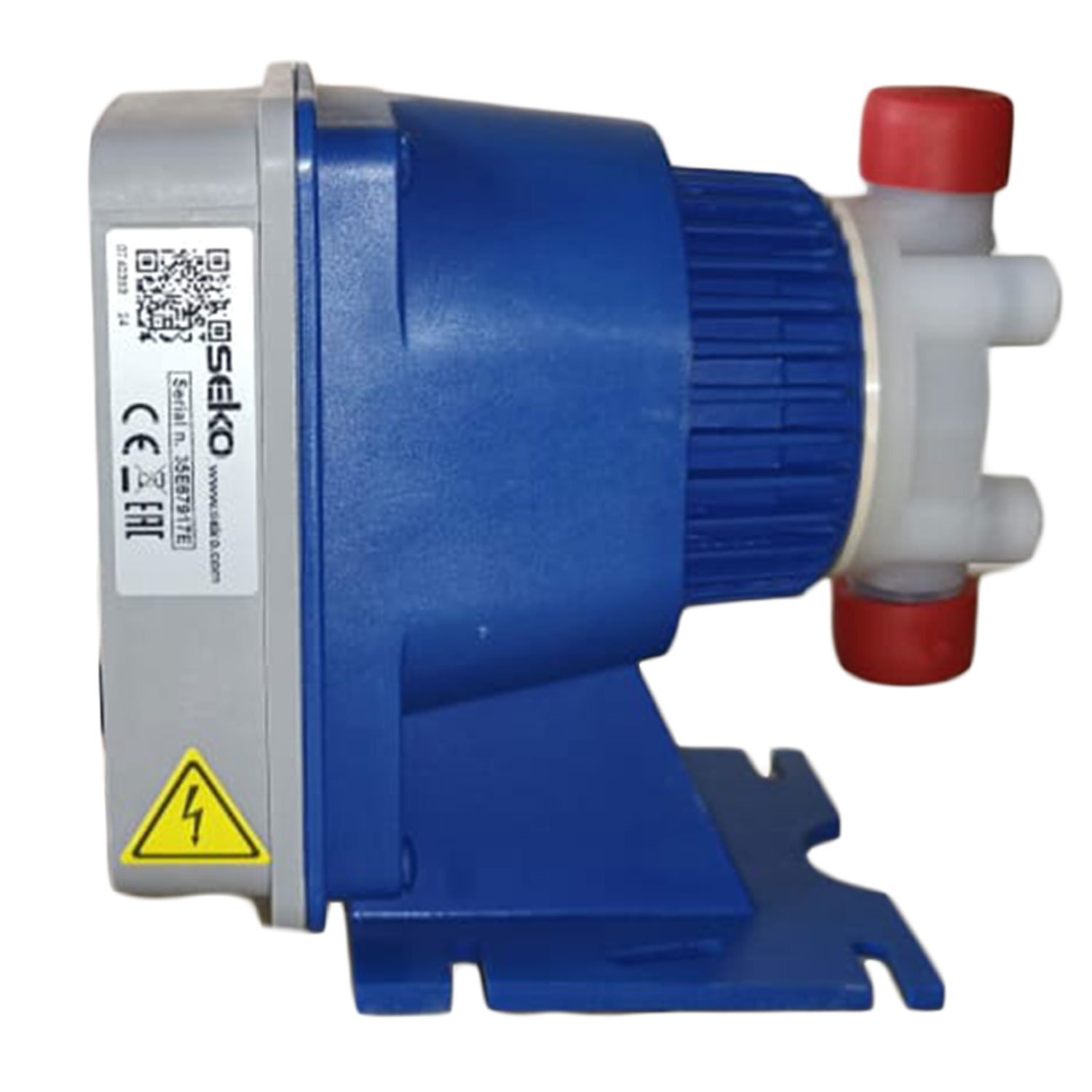

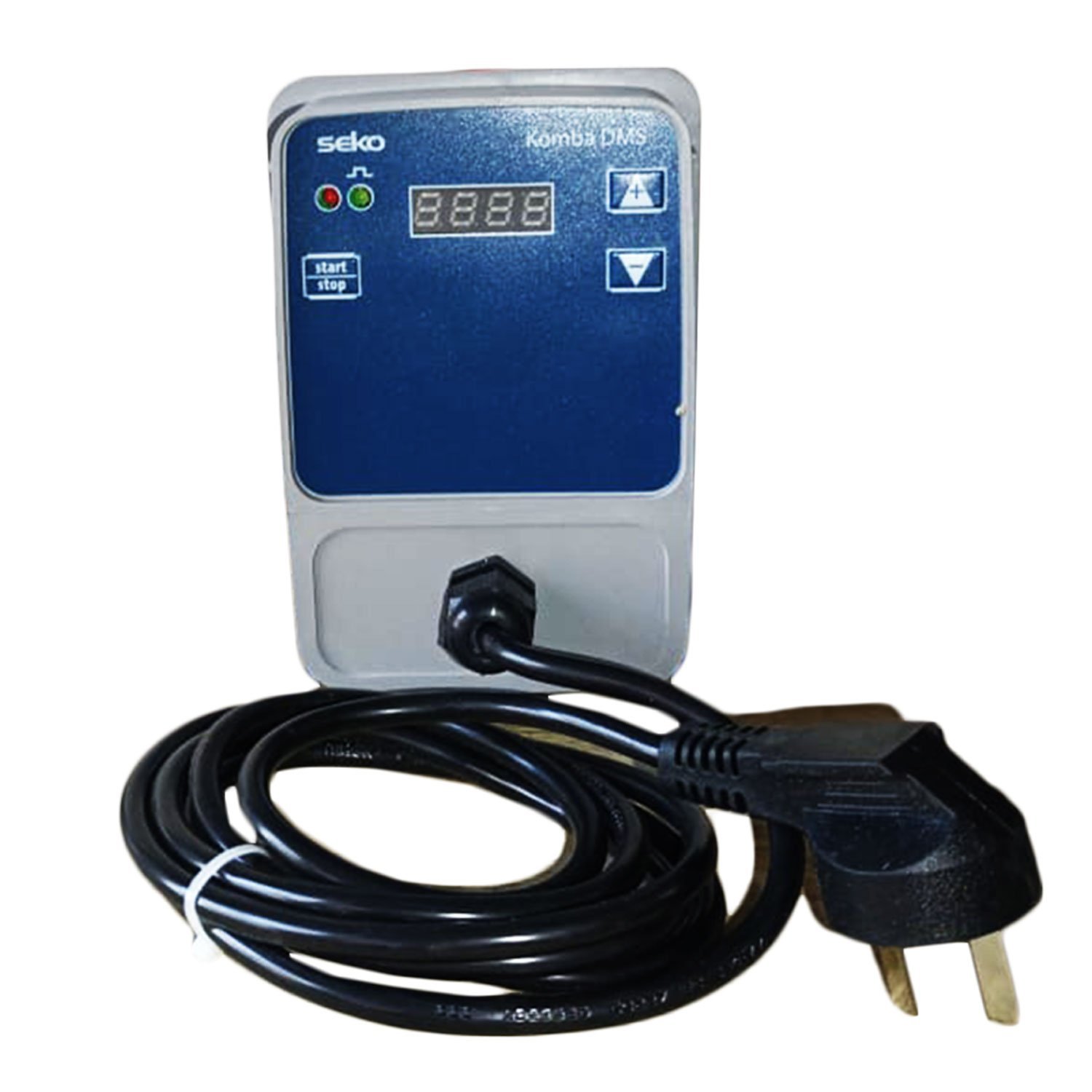

DMS200 Seko Chemical Dosing Pump I 0-9LPH@10Bar

The DMS200 Chemical Dosing Pump is a precision-driven solution designed to inject specific amounts of chemicals into a process stream. It is a crucial component for various industrial applications, including water treatment and manufacturing processes. Manufactured by Seko, the DMS200 is engineered to add acid or other chemicals at controlled rates, ensuring the accurate concentration needed within the system. This pump plays a key role in optimizing chemical treatments, enhancing efficiency, and maintaining the required chemical balance in systems where precise dosing is vital. Its reliability and performance make it an essential tool in numerous industries.

Seko DMS200 Chemical Dosing Pumps Features:

Accuracy: Capable of dosing in highly accurate & adjustable amounts.

Corrosion Resistance: Head materials made of PP, PVC, stainless steel, or other corrosion-resistant materials due to the potentially hazardous nature of the acid/chemicals.

Automation: Can be automated and integrated with PLC control systems to ensure consistent dosing whenever it’s needed.

Flow Control: Flow rate can be controlled manually or automatically via electronic control systems.

Applications of Dosing Pump:

• Water Purification Systems
• Wastewater Treatment Plants
• Industrial Production processes like food & beverage, pharmaceuticals, textile, garments, chemicals processing industry
• Agricultural systems to apply fertilizers or pesticides in accurate amounts.

In seko pumps, there are so many varieties like diaphragm type, piston type, etc. Every pump type selection depends on its application of it.

Actually, chemical dosing pump prices have a huge range. It depends on the head materials, lining materials, transferring capacity, pressure, & motor efficiency, etc.

Generally, the dosing pump price depends on capacity.

• In assumption 0-30LPH, the price is between 10,000 to 45,000 BDT. (For light dosing systems like water treatment)
• 20-300LPH price between 30,000 to 200,000 BDT. (For production process use or wastewater treatment process)
• And 300-1500LPH price between 150,000 to 500,000 BDT. (For heavy use with acidic medium).

Technical Specifications:

Model: DMS200
Liquid: Acid/Chemical
Dosing Head: PVDF
Section, Discharge: PPE
Diaphragm Material: EPDM
Sp. Gravity: 1 kg/dm3
Temperature: Ambient
Discharge Capacity: 2-9 LPH
Total dynamic head: 10Bar
Drive Motor: 14 W
Standardization: ISO 9001, 2008
Valve Ball Material: Alumina Ceramic
O-ring: FKM / EPDM
Seal & Gasket: EPDM / FPM
Brand: SEKO
Origin: Italy
