GD250 Fine Bubble Disk Diffuser I Size: 10 Inch

Fine Bubble Disk Diffusers are a proven and dependable technology widely used to treat both municipal and industrial wastewater. These diffusers play a vital role in optimizing the oxygenation process within aeration systems, improving the efficiency of wastewater treatment. Known for their minimal pressure drop, Fine Bubble Disk Diffusers offer high oxygen transfer efficiency, ensuring effective treatment even in demanding conditions. The technology is also valued for its ability to provide even bubble distribution, enhancing the overall performance of the treatment system. With these features, Fine Bubble Disk Diffusers remains a reliable and practical choice for wastewater treatment applications across various sectors.

Advantages of Fine Bubble Disk Diffuser:

• Free Cost-Estimates & Designs: Greenify offers free cost estimates and evaluations without obligations to make sure that the Greatech Disc diffuser is a perfect fit for every project.
• High-Quality Aeration Products: Greenify aeration systems are well-known in the industry for their outstanding performance and quality, with a wide range of models available to meet your specific treatment requirements flexibly.
• Quality and Innovation: Greenify has a tradition of providing superior quality products and lasting innovation. Everything from our diaphragms to our fittings and air distribution lines is subjected to rigorous quality testing.
• Installation and Commissioning: A professional project management team ensures that each project is completed on time and with the highest quality. The installation and commissioning of each project is guided by an experience
  engineer.

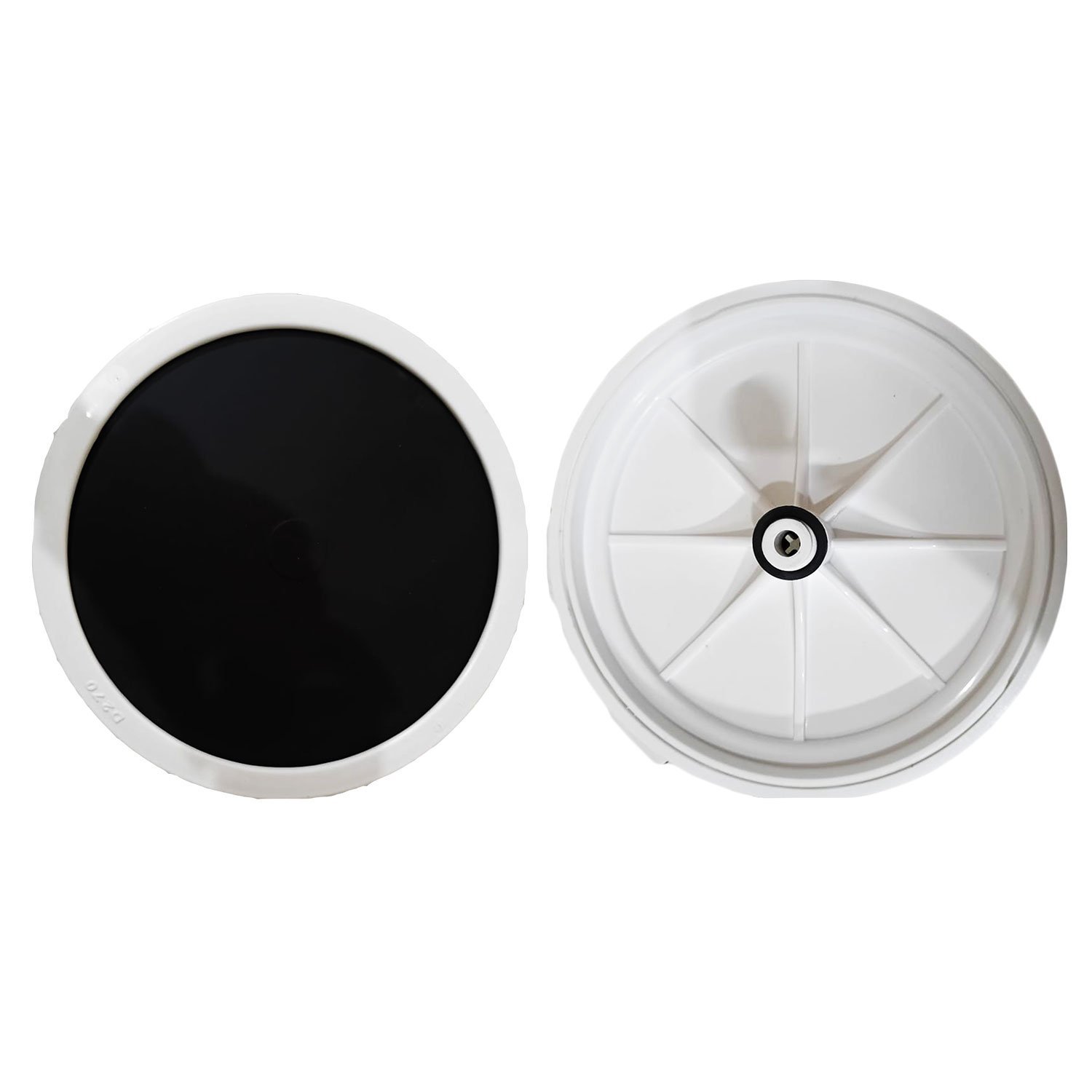

GD250 Disk Type Fine Bubble Diffuser
Size: 10”
MOC: EPDM
Connector: ¾” NPT Male Threat
Membrane Thickness: 02 mm
Bubble Size: 1-3 mm
Design Flow: 3-5 m3/Hr
Flow Range: 1-10 m3/Hr
SOTE: = 38% (06 m Submerged)
SOTR: = 0.45 Kg O2/h
SAE: = 8.9 Kg O2/Kw.h
Headloss: 1500-4300 Pa
Service Area: 0.25-1.25 m2/Pcs
Service Life: Minimum 05 Year

Fine bubble diffusers are widely used due to their combination of high oxygen transfer efficiency and low energy requirements, making them a preferred choice for wastewater treatment plants.
