Description

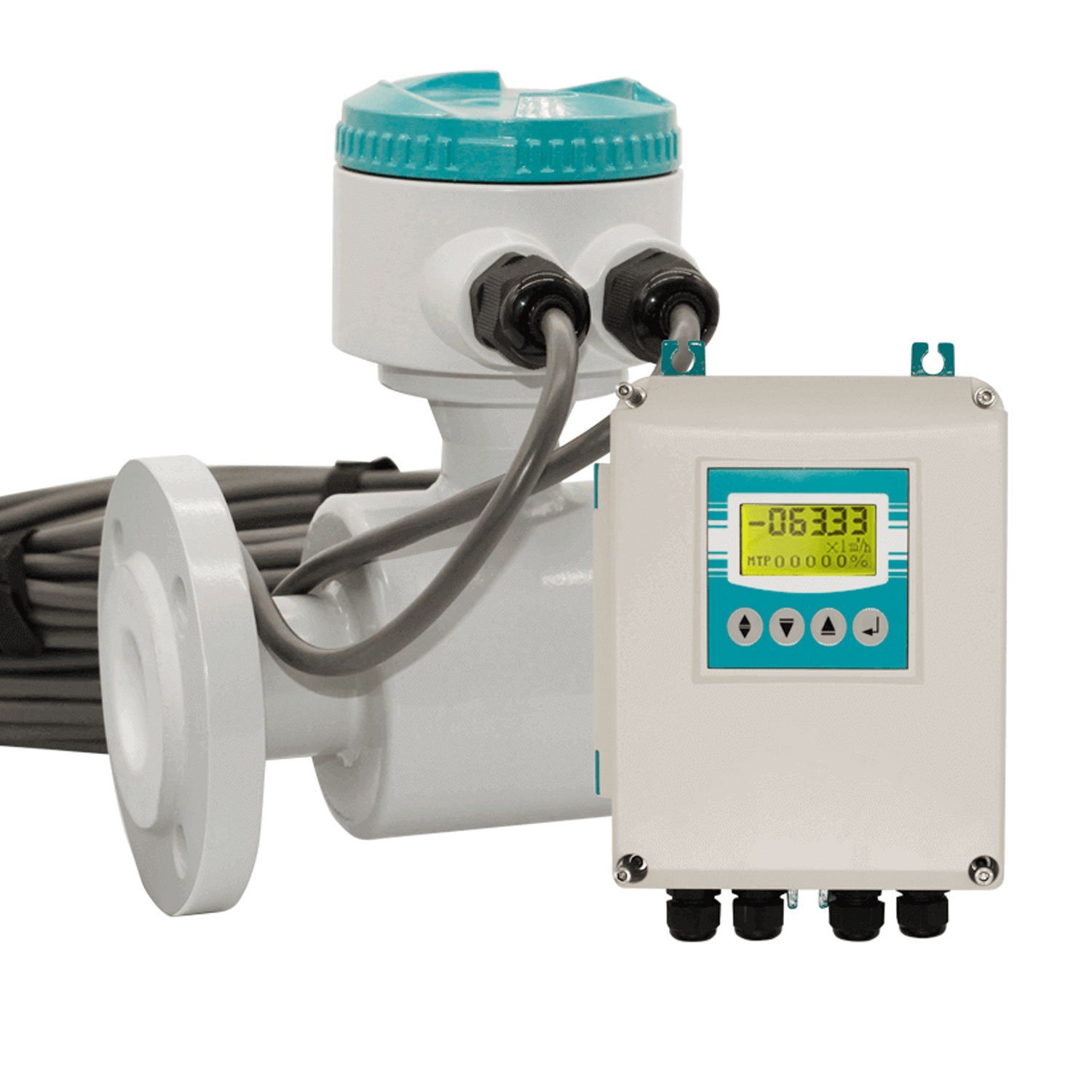

The Koncept Digital Water Flow Meter is widely used across various industries to measure the flow of water accurately. With its advanced technology, this flow meter ensures precise and reliable readings for a range of applications. For industries looking to measure the flow of different mediums, a magnetic flowmeter is the best option, as it offers exceptional accuracy and performance. Whether for industrial or commercial purposes, choosing the right flow meter is key to maintaining optimal operations and efficiency.
Flange Koncept Magnetic Digital Water Flow Meter Main Performances Parameters:
| Size | DN3-DN3000mm |
| Nominal Pressure | 0.6-1.6Mpa(2.5Mpa/4.0Mpa/6.4Mpa…Max 42Mpa) |
| Accuracy | +/-0.5%(Standard) +/-0.3% or +/-0.2%(Optional) |
| Liner | PTFE, Neoprene, Hard Rubber, EPDM, FEP, Polyurethane, PFA |
| Electrode | SUS316L, Hastelloy B, Hastelloy C Titanium, Tantalum, Platinium-iridium |
| Structure Type | Integral type, remote type, submersible type, ex-proof type |
| Medium Temperature | -20~+60 degC(Integral type) |
| Remote type(Neoprene,Hard Rubber,Polyurethane,EPDM) -10~+80degC Remote type(PTFE/PFA/FEP) -10~+160degC | |
| Ambient Temperature | -20~+60deg C |
| Ambient Humidity | 5-100%RH(relative humidity) |
| Measuring Range | Max 15m/s |
| Conductivity | >5us/cm |
| Protection Class | IP65(Standard); IP68 (Optional for remote type) |
| Process Connection | Flange (Standard), Wafer, Thread, Tri-clamp etc (Optional) |
| Output Signal | 4-20mA/Pulse |
| Communication | RS485(Standard), HART(Optional),GPRS/GSM (Optional) |
| Power Supply | AC220V (can be used for AC85-250V) DC24V (can be used for DC20-36V) DC12V (optional), Battery Powered 3.6V (optional) |
| Power Consumption | <20W |
| Alarm | Upper Limit Alarm / Lower Limit Alarm |
| Self-diagnosis | Empty Pipe Alarm, Exciting Alarm |
| Explosion Proof | ATEX |
Flange Magnetic Flow Meter Electrode Material Selection:
| Electrode Material | Applications & Properties |
| SUS316L | Applicable to industrial/municipal water, wastewater and low corrosive mediums. Widely used in petroleum, chemical industries. |
| Hastelloy B | Strong resistance to hydrochloric acids below the boiling point. Resist against oxidable acids, alkali and non-oxidable salts. For instance, vitriol, phosphate, hydrofluoric acids, and organic acids. |
| Hastelloy C | Exceptional resistance to strong solutions of oxidizing salts and acids. For example, Fe+++, Cu++, Nitric acids, mixed acids |
| Titanium | Titanium can withstand corrosive mediums such as seawater, chloride salt solutions, hypochlorite salts, oxidable acids(including fuming nitric acids), organic acids, and alkalis. Not resistant to high purity reducing acids such as sulphuric acids and hydrochloric acids. |
| Tantalum | Highly resistant to corrosive mediums. Applicable to all chemical mediums except Hydrofluoric Acids, Oleum, and Alkali. |
| Platinum-iridium | Applicable to all chemical mediums except for Ammonium salts and Fortis |
Flange Magnetic Water Flow Meter Flow Range:
| Model | Flow Range & Velocity Table | |||||||
| （mm） | 0.1m/s | 0.2m/s | 0.5m/s | 1m/s | 4m/s | 10m/s | 12m/s | 15m/s |
| K3 | 0.003 | 0.005 | 0.013 | 0.025 | 0.102 | 0.254 | 0.305 | 0.382 |
| K6 | 0.01 | 0.02 | 0.051 | 0.102 | 0.407 | 1.017 | 1.221 | 1.526 |
| K10 | 0.028 | 0.057 | 0.141 | 0.283 | 1.13 | 2.826 | 3.391 | 4.239 |
| K15 | 0.064 | 0.127 | 0.318 | 0.636 | 2.543 | 6.359 | 7.63 | 9.538 |
| K20 | 0.113 | 0.226 | 0.565 | 1.13 | 4.522 | 11.304 | 13.56 | 16.956 |
| K25 | 0.177 | 0.353 | 0.883 | 1.766 | 7.065 | 17.663 | 21.2 | 26.494 |
| K32 | 0.289 | 0.579 | 1.447 | 2.894 | 11.575 | 28.938 | 34.73 | 43.407 |
| K40 | 0.452 | 0.904 | 2.261 | 4.522 | 18.086 | 45.216 | 54.26 | 67.824 |
| K50 | 0.707 | 1.413 | 3.533 | 7.065 | 28.26 | 70.65 | 84.78 | 105.98 |
| K65 | 1.19 | 2.39 | 5.97 | 11.94 | 47.76 | 119.4 | 143.3 | 179.1 |
| K80 | 1.81 | 3.62 | 9.04 | 18.09 | 72.35 | 180.86 | 217 | 271.3 |
| K100 | 2.83 | 5.65 | 14.13 | 28.26 | 113.04 | 282.6 | 339.1 | 423.9 |
| K125 | 4.42 | 8.83 | 22.08 | 44.16 | 176.63 | 441.56 | 529.9 | 662.34 |
| K150 | 6.36 | 12.72 | 31.79 | 63.59 | 254.34 | 635.85 | 763 | 953.78 |
| K200 | 11.3 | 22.61 | 56.52 | 113.04 | 452.16 | 1130.4 | 1356 | 1696 |
| K250 | 17.66 | 35.33 | 88.31 | 176.53 | 706.5 | 1766.25 | 2120 | 2649 |
| K300 | 25.43 | 50.87 | 127.2 | 254.34 | 1017 | 2543.4 | 3052 | 3815 |
| K350 | 34.62 | 69.24 | 173.1 | 346.19 | 1385 | 3461.85 | 4154 | 5193 |
| K400 | 45 | 90 | 226.1 | 452 | 1809 | 4522 | 5426 | 6782 |
| K450 | 57 | 114 | 286.1 | 572 | 2289 | 5723 | 6867 | 8584 |
| K500 | 71 | 141 | 353.3 | 707 | 2826 | 7065 | 8478 | 10598 |
| K600 | 102 | 203 | 508.7 | 1017 | 4069 | 10174 | 12208 | 15260 |
| K700 | 138 | 277 | 692.4 | 1385 | 5539 | 13847 | 16617 | 20771 |
| K800 | 181 | 362 | 904.3 | 1809 | 7235 | 18086 | 21704 | 27130 |
| K900 | 229 | 458 | 1145 | 2289 | 9156 | 22891 | 27469 | 34336 |
| K1000 | 283 | 565 | 1413 | 2826 | 11304 | 28260 | 33912 | 42390 |
| K1200 | 407 | 814 | 2035 | 4069 | 16278 | 40694 | 48833 | 61042 |
| K1400 | 554 | 1108 | 2769 | 5539 | 22156 | 55390 | 66468 | 83084 |
| K1600 | 723 | 1447 | 3617 | 7235 | 28938 | 72346 | 86815 | 108518 |
| K1800 | 916 | 1831 | 4578 | 9156 | 36625 | 91562 | 109875 | 137344 |
| K2000 | 1130 | 2261 | 5652 | 11304 | 45216 | 113040 | 135648 | 169560 |
| K2200 | 1368 | 2736 | 6839 | 13678 | 54711 | 136778 | 164134 | 205168 |
| K2400 | 1628 | 3256 | 8139 | 16278 | 65111 | 162778 | 195333 | 244166 |
| K2600 | 1910 | 3821 | 9552 | 19104 | 76415 | 191038 | 229245 | 286556 |
| K2800 | 2216 | 4431 | 11078 | 22156 | 88623 | 221558 | 265870 | 332338 |
| K3000 | 2543 | 5087 | 12717 | 25434 | 101736 | 254340 | 305208 | 381510 |
| Remark: Suggest flow velocity range 0.5m/s – 15m/s | ||||||||
Flange Magnetic Flow Meter Selection Guide:
| KICL | xxx | x | x | x | x | x | x | x | x | |
| Caliber | DN3mm-DN3000mm | |||||||||
| Nominal Pressure | 0.6Mpa | 1 | ||||||||
| 1.0Mpa | 2 | |||||||||
| 1.6Mpa | 3 | |||||||||
| 4.0Mpa | 4 | |||||||||
| Other | 5 | |||||||||
| Connection Mode | Flange connection | 1 | ||||||||
| Clamp connection | 2 | |||||||||
| Sanitary connection | 3 | |||||||||
| Liner Material | PTFE | 1 | ||||||||
| PFA | 2 | |||||||||
| Neoprenen | 3 | |||||||||
| Polyurethane | 4 | |||||||||
| Ceramic | 5 | |||||||||
| Electrode Material | 316L | 1 | ||||||||
| Hastelloy B | 2 | |||||||||
| Hastelloy C | 3 | |||||||||
| Titanium | 4 | |||||||||
| Platinum-iridium | 5 | |||||||||
| Tantalum | 6 | |||||||||
| Stainless steel covered with tungsten carbide | 7 | |||||||||
| Structure Type | Integral type | 1 | ||||||||
| Remote type | 2 | |||||||||
| Remote type immerse | 3 | |||||||||
| Integral type Ex-proof | 4 | |||||||||
| Remote type Ex-proof | 5 | |||||||||
| Power | 220VAC 50Hz | E | ||||||||
| 24VDC | G | |||||||||
| Output communication | Flow volume 4-20mADC/pulse | A | ||||||||
| Flow volume 4-20mADC/RS232C communication | B | |||||||||
| Flow volume 4-20mADC/RS485 communication | C | |||||||||
| Flow volume HART output/with communication | D | |||||||||
| Converter Figure | Square | A | ||||||||
| Circular | B | |||||||||
Flange Electromagnetic Flow Meter Installation Requirement:
In order to obtain a stable and accurate flow measurement, the flow meter must be installed correctly in the pipe system.
Do not install the meter near equipment that produces electrical interference, such as electric motors, transformers, variable frequency, power cables, etc.
Avoid locations with pipe vibrations, such as pumps.
Do not install the meter close to pipeline valves, fittings, or impediments that can cause flow disturbances.
Place the meter where there is enough access for installation and maintenance tasks.
(1).jpg) install at the lowest point and vertical upward direction Don’t install at the highest point or in a vertical downward direction | (1).jpg) When the drop is more than 5m, install exhaustthe valve at the downstream |
(1).jpg) install at the lowest point when used in the open drain pipe | .jpg) Need 10D of upstream and 5D of downstream. |
.jpg) Don’t install it at the entrance of pump; install it at the exit of pump. | .jpg) install at the rising direction |
