Description

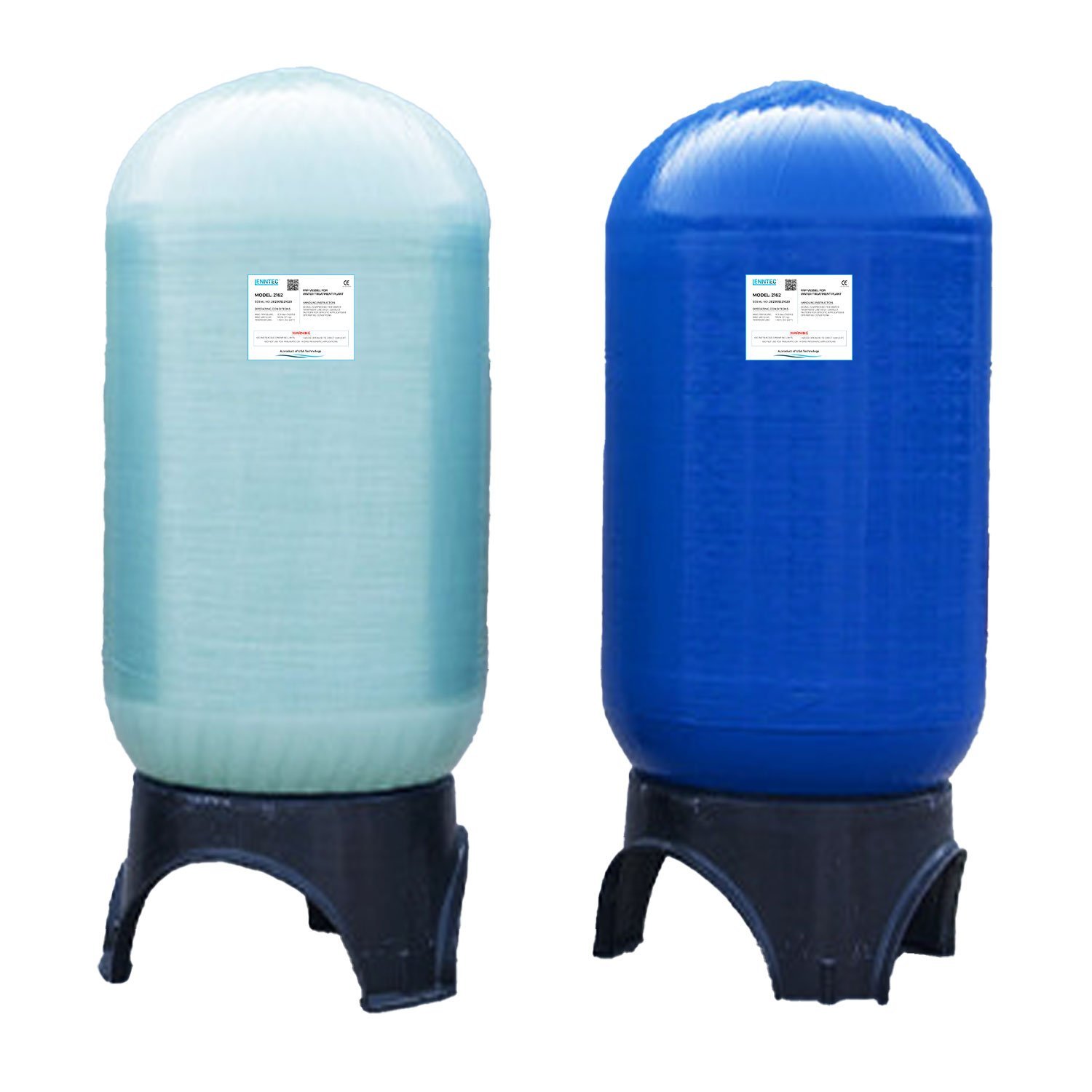

Fiberglass-reinforced plastic (FRP) vessels are commonly used in water treatment systems due to their unique properties and advantages.
Advantages of 3072 FRP Vessels:
Corrosion Resistance: FRP vessels are profoundly impervious to erosion, making them ideal for treating water with forceful synthetic substances like acids and bases.
Lightweight: They are lighter than metal vessels, decreasing transportation and establishment costs.
Durability: FRP materials are strong and endure unforgiving natural circumstances, including UV openness and temperature varieties.
Customization: FRP vessels can be produced in different shapes and sizes, considering customization given explicit water treatment needs.
Low Maintenance: These vessels require less upkeep than customary materials, which can prompt diminished functional expenses.
Thermal Insulation: FRP has excellent warm protection properties, assisting with keeping up with the water’s temperature.
Technical Detail of 3072 FRP Vessel:
| Model | Dia. X Height (Mm) | Top Open | Bottom Open | Mounting Mode | Liters |
| 610 | 155×255 | 2.5″NPSM | N/A | Top | 3.33 |
| 613 | 155×335 | 2.5″ NPSM | N/A | Top | 4.50 |
| 618 | 155×465 | 2.5″ NPSM | N/A | Top | 6.80 |
| 629 | 155×720 | 2.5″ NPSM | N/A | Top | 11.30 |
| 635 | 155×880 | 2.5″ NPSM | N/A | Top | 13.86 |
| 713 | 180×350 | 2.5″ NPSM | N/A | Top | 7.50 |
| 717 | 180×450 | 2.5″ NPSM | N/A | Top | 8.10 |
| 735 | 180×905 | 2.5″ NPSM | N/A | Top | 18.10 |
| 744 | 180×1135 | 2.5″ NPSM | N/A | Top | 24.25 |
| 813 | 205×335 | 2.5″ NPSM | N/A | Top | 7.90 |
| 817 | 205×438 | 2.5″NPSM | N/A | Top | 11.20 |
| 824 | 205×620 | 2.5″ NPSM | N/A | Top | 17.10 |
| 835 | 205×890 | 2.5″ NPSM | N/A | Top | 24.80 |
| 844 | 205×1130 | 2.5″NPSM | N/A | Top | 31.20 |
| 935 | 230×910 | 2.5″ NPSM | N/A | Top | 31.20 |
| 942 | 230×1090 | 2.5″ NPSM | N/A | Top | 38.30 |
| 948 | 230×1230 | 2.5″NPSM | N/A | Top | 44.56 |
| 1013 | 255×340 | 2.5″ NPSM | N/A | Top | 13.10 |
| 1017 | 255×440 | 2.5″ NPSM | N/A | Top | 17.72 |
| 1024 | 255×635 | 2.5″ NPSM | N/A | Top | 25.80 |
| 1035 | 255×905 | 2.5″NPSM | N/A | Top | 38.40 |
| 1044 | 255×1130 | 2.5″ NPSM | N/A | Top | 49.80 |
| 1054 | 255×1380 | 2.5″ NPSM | N/A | Top | 61.60 |
| 1248 | 300×1220 | 2.5″ NPSM | N/A | Top | 78.39 |
| 1252 | 300×1340 | 2.5″ NPSM | N/A | Top | 90.70 |
| 1354 | 335×1400 | 2.5″ NPSM | N/A | Top | 109.34 |
| 1465 | 355×1650 | 2.5″ NPSM | N/A | Top | 148.2 |
| 1665 | 405×1650 | 2.5″ NPSM | N/A | Top | 195.10 |
| 4″UN | 4″UN | Top / Side | 203.1 | ||
| 1865 | 460×1650 | 2.5″NPSM | N/A | Top | 248.04 |
| 4″UN | 4″UN | Top / Side | 256.00 | ||
| 2069 | 510×1750 | 4″UN | N/A | Top / Side | 295.55 |
| 2069 | 510×1900 | 4″UN | 4″UN | Top / Side | 301.20 |
| 2162 | 550×1750 | 4″UN | N/A | Top | 315.77 |
| 2162 | 550×1900 | 4″UN | 4″UN | Top / Side | 323.10 |
| 2472 | 620×1900 | 4″UN | N/A | Top | 467.04 |
| 2472 | 620×2200 | 4″UN | 4″UN | Top / Side | 470.10 |
| 3072 | 760×1900 | 4″UN | N/A | Top | 715.20 |
| 3072 | 760×2100 | 4″UN | 4″UN | Top / Side | 718.10 |
| 3072 | 760×2210 | 6″Flange | 6″Flange | Side | 719.10 |
| 3672 | 910×1900 | 4″UN | N/A | Top | 1012 |
| 3672 | 910×2200 | 4″UN | 4″UN | Top / Side | 1018 |
| 3672 | 910×2250 | 6″Flange | 6″Flange | Side | 1031 |
| 4272 | 1050×2250 | 6″Flange | 6″Flange | Side | 1465 |
| 4872 | 1250×2200 | 6″Flange | 6″Flange | Side | 1685 |
| 4886 | 1250×2400 | 6″Flange | 6″Flange | Side | 2487 |
| 6086 | 1500×2400 | 6″Flange | 6″Flange | Side | 2979 |
| 6367 | 1600×2100 | 6″Flange | 6″Flange | Side | 2764 |
| 6386 | 1600×2500 | 6″Flange | 6″Flange | Side | 3719 |
| 7296 | 1800×2400 | 6″Flange | 6″Flange | Side | 5770 |
| 8096 | 2000×2400 | 6″Flange | 6″Flange | Side | 7860 |
Applications of Pressure Vessel:
Filtration Systems: FRP vessels are used in quartz sand, multimedia, and carbon filters to remove solid particles from water.
