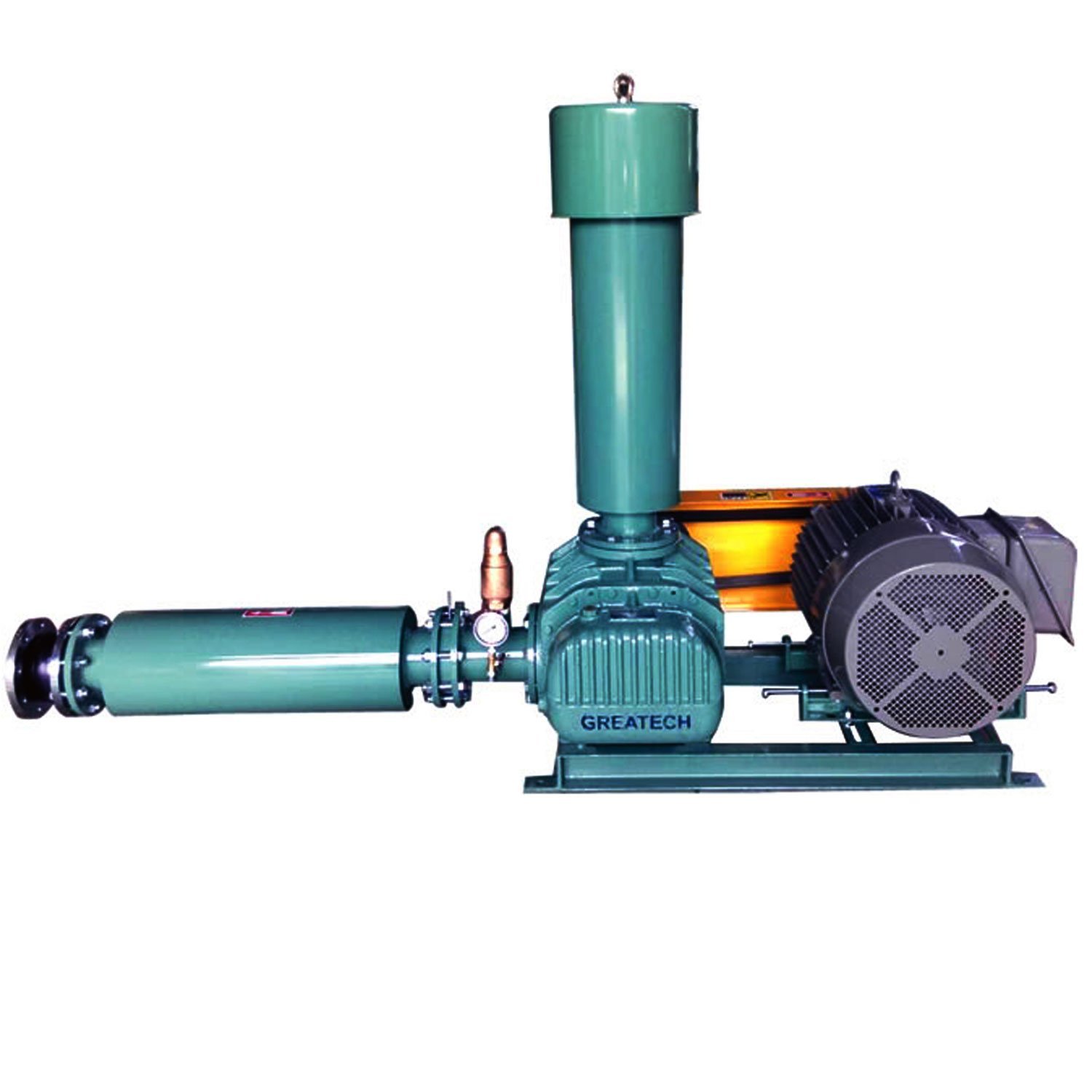

G50 Roots Air Blower I Capacity: 120m3/Hr

Roots Air Blower supplier Greatech offers top-quality Positive Displacement Roots Air Blowers. They are widely used in industrial aeration systems, where precise air pressure control is essential. The Greatech G Series stands out as the best choice for aerating your plants, ensuring optimal airflow and reliable performance. With a range of bore sizes from 25mm to 400mm (1″ to 16″) and capacities from 0.1 to 300 m³/min, Greatech’s Roots Air Blowers cater to various application needs. Designed to handle pressures ranging from 0 to 20,000 mmAq (0 to 2 kgf/cm²), these blowers provide the versatility and efficiency required for demanding aeration processes.

Tri-Lobe Roots Blower

It looks like you’re listing the benefits or features of a Tri-Lobe Roots Blower. Here’s a quick breakdown of each feature you mentioned:

1. High Efficiency: Tri-lobe blowers are designed for maximum air displacement with minimal power consumption, making them ideal for energy-efficient operations.
2. Energy Saving: Their design reduces energy usage compared to other blower types, which can lead to lower operational costs in the long run.
3. Low Noise: The tri-lobe design helps reduce the turbulence and friction inside the blower, contributing to quieter operation.
4. Stable Air Flow: The shape of the lobes ensures a smooth, consistent airflow, making them suitable for precise applications that require stable delivery of air.
5. Sturdy Construction: Built with strong materials, these blowers are designed to last and handle demanding environments.
6. Easy Maintenance: Typically, these blowers are designed for easy disassembly and maintenance, with fewer parts prone to wear.
7. Extremely Low Vibration: The balance of the tri-lobe design reduces mechanical vibrations, which can prolong the life of the blower and reduce wear on other components.
8. Long Lifetime: Given their design and durable construction, these blowers can operate reliably for many years with minimal degradation.
9. Cleaning Air: They can be used in environments where air purity is essential, as they don’t introduce oils or other contaminants into the air stream.
10. No Oily Odors: Unlike some blowers that rely on oil for lubrication, tri-lobe blowers often use dry, oil-free air delivery, which ensures no oil contamination or odor.

Technical Specifications of Greatech Roots Air Blower:

Model: G50
Capacity: up to 120 m3/hr
Pressure: 6000mmAq
Cooling Type: Air
Brand: Greatech
Origin: Taiwan

Motor Specification:
Type: Squirrel cage Induction motor
Rating: 3.7kW (05 HP), 380VAC, 50Hz
Class: IP 55
Speed: 1450 RPM
Time duty: Continuous
Noise: 70 dB
Brand: Hyden/Eqv
Include Complete Following Accessories: Base Common, Safety Valve, Pressure Gauge, Motor Pulley & V-Belts, Belt Guard, Suction & Discharge Silencer, Flexible joint Check Valve and Short pipe.

Performance Curve of G50 Roots Air Blower:

Dimension of G50 Roots Air Blower:

Noise Level of G50 Roots Blower:

Applications:

• Waste Water Treatment
• Aquaculture
• Electroplating Industry
• Powder Conveyance
• Grain Transport
• Paper Making Industry
• Food Industry
• Semiconductor Industry
• Chemical Industry
• Vacuum Dryer
• Vacuum Packing for Food
• Dust Collection Machin
