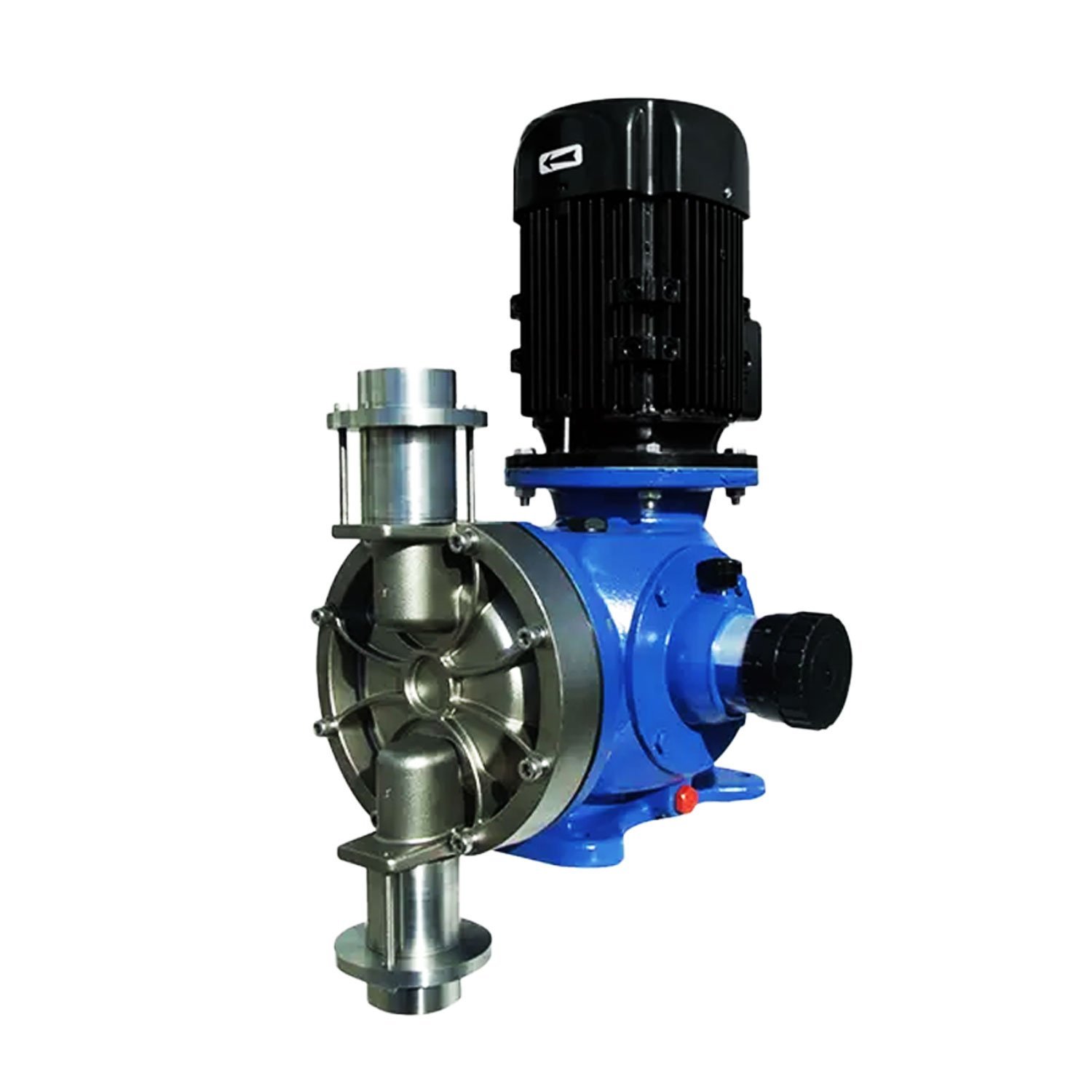

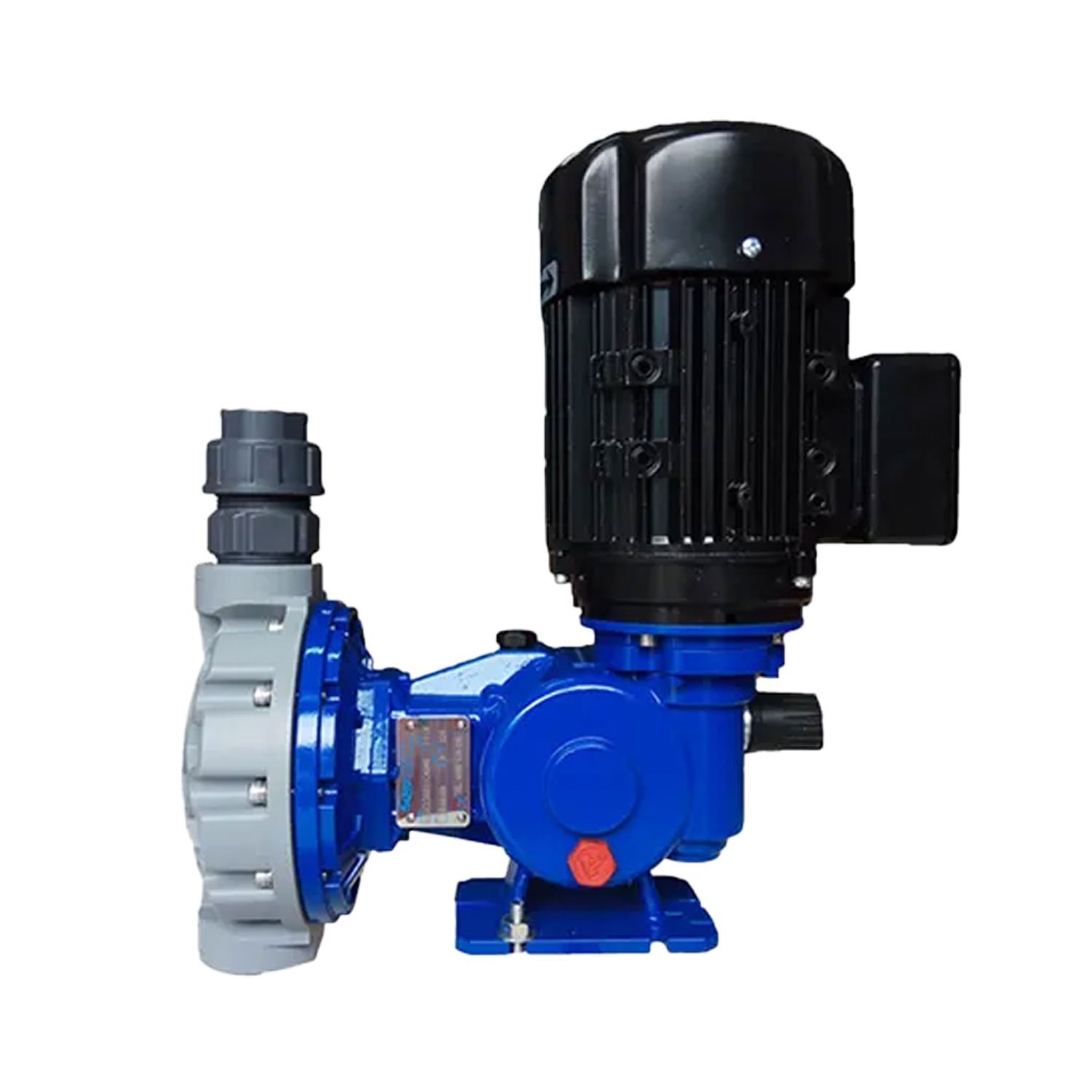

MS1B108A Seko Chemical Dosing Pump I 60LPH@10Bar

The MS1B108A Dosing Pump is a specialized type of pump designed to inject precise amounts of chemicals or fluids into a process stream. Commonly used in water treatment, manufacturing, and various other industrial applications, the MS1B108A ensures that acids and other chemicals are added at controlled rates. This guarantees that the system maintains the required concentration of the chemical for optimal performance. Developed by Seko, this dosing pump offers reliable accuracy in chemical dosing, making it essential for processes that require precise chemical concentrations to function efficiently and safely.

Seko MS1B108A Chemical Dosing Pump Chemical Dosing Pumps Features:

Accuracy: Capable of dosing in highly accurate & adjustable amounts.

Corrosion Resistance: Head materials made of PP, PVC, stainless steel, or other corrosion-resistant materials due to the potentially hazardous nature of the acid/chemicals.

Automation: Can be automated and integrated with PLC control systems to ensure consistent dosing whenever it’s needed.

Flow Control: Flow rate can be controlled manually or automatically via electronic control systems.

Applications of Dosing Pump:

• Water Purification Systems
• Wastewater Treatment Plants
• Industrial Production processes like food & beverage, pharmaceuticals, textile, garments, chemicals processing industry
• Agricultural systems should apply fertilizers or pesticides in accurate amounts.

In seko pumps, there are so many varieties like diaphragm type, piston type, etc. Every pump type selection depends on its application of it.

Actually, chemical dosing pump prices vary considerably. It depends on the head materials, lining materials, transferring capacity, pressure, & motor efficiency, etc.

Generally, the dosing pump price depends on capacity.

• In assumption 0-30LPH price between 10,000 to 45,000 BDT. (For light dosing systems like water treatment)
• 20-300LPH price between 30,000 to 200,000 BDT. (For production process use or wastewater treatment process)
• And 300-1500LPH price between 150,000 to 500,000 BDT. (For heavy use with acidic medium).

Technical Specifications:
Model: MS1B108A
Liquid: Acid/Chemical
Dosing Head: PVDF
Section, Discharge: PPE
Diaphragm Material: EPDM
Sp. Gravity: 1 kg/dm3
Temperature: Ambient
Discharge Capacity: 60 LPH
Total dynamic head: 10Bar
Drive Motor: 0.37 W/380VAC/50Hz
Standardization: ISO 9001, 2008
Valve Ball Material: Alumina Ceramic
O-ring : FKM / EPDM
Seal & Gasket: EPDM / FPM
Brand: SEKO
Origin : Italy

For wholesale price, please contact with us. Or Call us 01771646625 (WhatsApp)
