Description

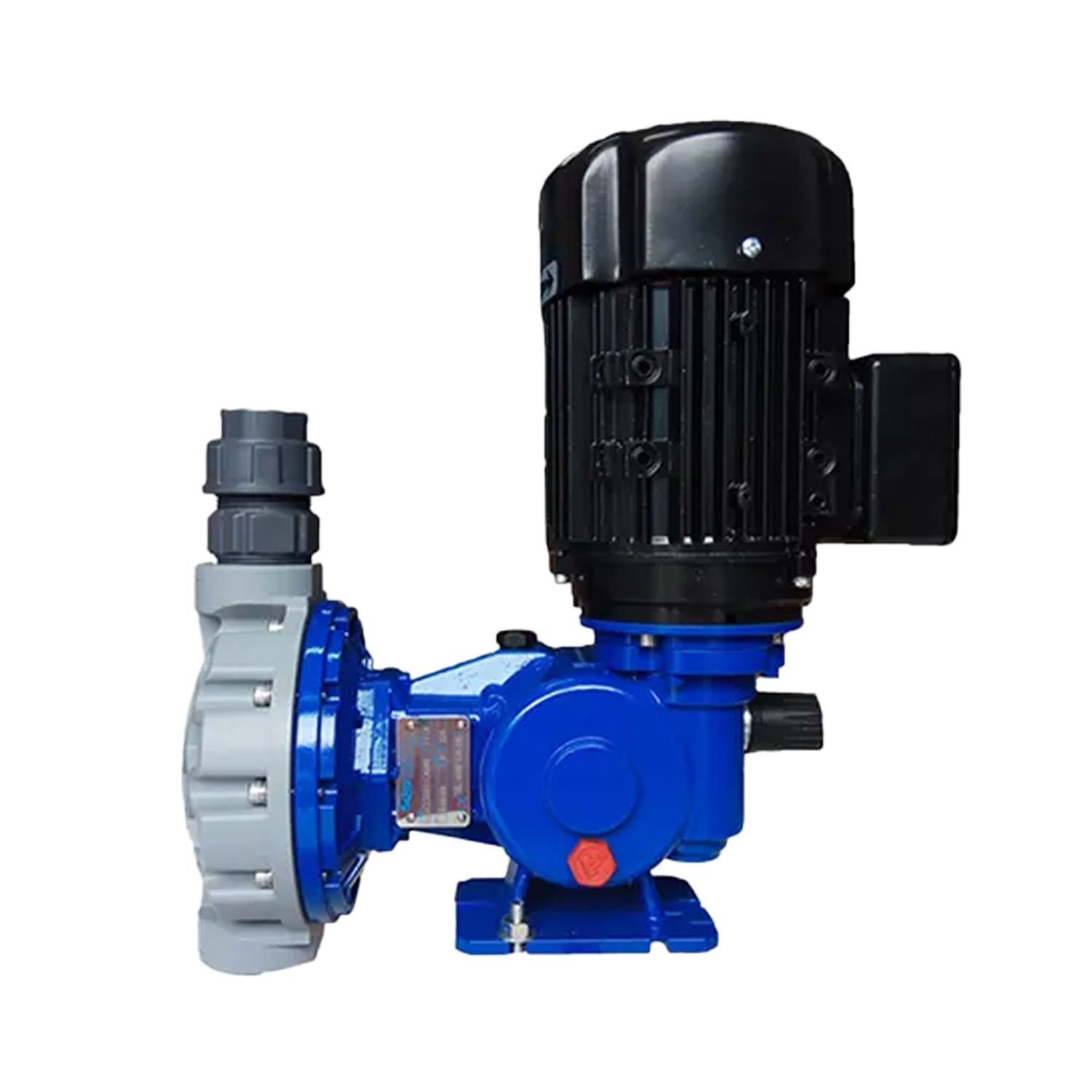

The MS1B108C Seko Chemical Dosing Pump is a highly efficient and reliable pump designed for the precise injection of chemicals into a variety of industrial processes. Whether used in water treatment, manufacturing, or other chemical handling applications, this dosing pump ensures the accurate and controlled addition of chemicals or acids. With the ability to deliver precise doses at controlled rates, the MS1B108C maintains the correct concentration of chemicals required for optimal performance. It is an essential tool for ensuring consistency and safety in a wide range of industrial systems.

Seko MS1B108C Chemical Dosing Pump Features:

Accuracy: Capable of dosing in highly accurate & adjustable amounts.

Corrosion Resistance: Head materials made of PP, PVC, stainless steel, or other corrosion-resistant materials due to the potentially hazardous nature of the acid/chemicals.

Automation: Can be automated and integrated with PLC control systems to ensure consistent dosing whenever it’s needed.

Flow Control: Flow rate can be controlled manually or automatically via electronic control systems.

Applications of Dosing Pump:

• Water Purification Systems
• Wastewater Treatment Plants
• Industrial Production processes like food & beverage, pharmaceuticals, textile, garments, chemicals processing industry
• Agricultural systems to apply fertilizers or pesticides in accurate amounts.

In seko pumps, there are so many varieties like diaphragm type, piston type, etc. Every pump type selection depends on its application of it.

Actually, chemical dosing pumps prices have a huge range. It depends on the head materials, lining materials, transferring capacity, pressure, & motor efficiency, etc.

Generally, the dosing pump price depends on capacity.

• In assumption 0-30LPH price between 10,000 to 45,000 BDT. (For light dosing systems like water treatment)
• 20-300LPH price between 30,000 to 200,000 BDT. (For production process use or wastewater treatment process)
• And 300-1500LPH price between 150,000 to 500,000 BDT. (For heavy use with acidic medium).

Seko Dosing Pumps Technical Specifications:

Model: MS1B108C
Liquid: Acid/Chemical
Dosing Head: PVDF
Section, Discharge: PPE
Diaphragm Material: EPDM
Sp. Gravity: 1 kg/dm3
Temperature: Ambient
Discharge Capacity: 120 LPH
Total dynamic head: 10Bar
Drive Motor: 0.37 W/380VAC/50Hz
Standardization: ISO 9001, 2008
Valve Ball Material: Alumina Ceramic
O-ring: FKM / EPDM
Seal & Gasket: EPDM / FPM
Brand: SEKO
Origin: Italy
